Acessories for valves

Surface box
05.500

Datasheet
CAD / 3D Drawing

Features:

  • Body and lid of ductile iron withwater based black painting
  • Chain of zinc coated steel (if applicable)
  • Base of body with support surface that facilitates the settlement reducing the risks of unevenness to the pavement
  • Cap with tear for easy opening
  • Multiple models available: round, triangular, square, hexagonal and octagonal

Code Description CAD Drawing PDF Drawing Quantity

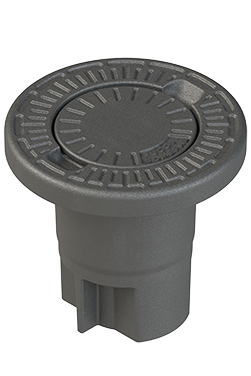

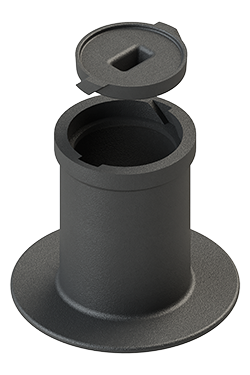

24B1AJ0PNNBAGZZZ00PA 1.1 REDONDA EPAL S/CORRENTE - ROUND EPAL WITHOUT CHAIN

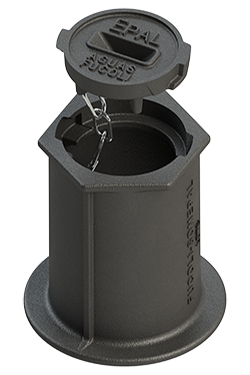

24B1AJ0PNNBAGZZZ00RA 1.2 REDONDA EPAL C/CORRENTE - ROUND EPAL WITH CHAIN
24B1AL0FNNBAGZZZ00PA 1.3 REDONDA FUCOLI S/CORRENTE - ROUND FUCOLI WITHOUT CHAIN
24B1AL0FNNBWRZZZ00RA 1.4 REDONDA FUCOLI C/CORRENTE - ROUND FUCOLI WITH CHAIN
24B1AL0FNNBAGZZZ00RA 1.4 REDONDA FUCOLI C/CORRENTE - ROUND FUCOLI WITH CHAIN
24B1AL0CNWBAGZZZ00RA 1.5 REDONDA COIMBRA C/CORRENTE - ROUND COIMBRA WITH CAHIN
24B1AL0ONNBAGZZZ00RA 1.6 REDONDA FIG DA FOZ C/CORRENTE - ROUND FIG DA FOZ WITH CHAIN
24B1AN0BNQBZZZZZ00PA 1.7 REDONDA BÁLTICO - ROUND BÁLTICO
24H1AJ0PNNBVMZZZ00PA 2.1 TRIANGULAR EPAL S/CORRENTE - TRIANGULAR EPAL WITHOUT CHAIN
24H1AJ0PNNBAGADB00PA 2.1 TRIANGULAR EPAL S/CORRENTE - TRIANGULAR EPAL WITHOUT CHAIN
24H1AJ0PNNBAGZZZ00PA 2.1 TRIANGULAR EPAL S/CORRENTE - TRIANGULAR EPAL WITHOUT CHAIN

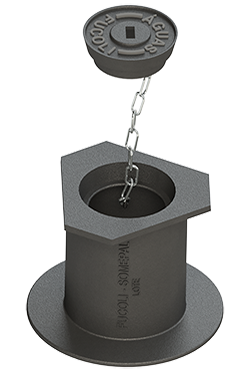

24H1AJ0PNNBAGZZZ00RA 2.2 TRIANGULAR EPAL C/CORRENTE - TRIANGULAR EPAL WITH CHAIN
24H1AL0FNNBAGZZZ00PA 2.3 TRIANGULAR FUCOLI S/CORRENTE - TRIANGULAR FUCOLI WITHOUT CHAIN
24H1AL0FNNBAGZZZ00RA 2.4 TRIANGULAR FUCOLI C/CORRENTE - TRIANGULAR FUCOLI WITH CHAIN
24H1AL0ONNBAGZZZ00RA 2.5 TRIANGULAR FIG DA FOZ C/CORRENTE - TRIANGULAR FIG DA FOZ WITH CHAIN
24F1AJ0PNNBAGZZZ00PA 3.1 QUADRADA EPAL S/CORRENTE - SQUARE EPAL WITHOUT CHAIN

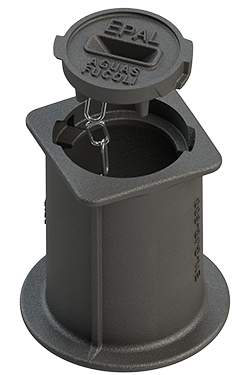

24F1AJ0PNNBAGZZZ00RA 3.2 QUADRADA EPAL C/CORRENTE - SQUARE EPAL WITH CHAIN
24F1AL0FNNBAGZZZ00PA 3.3 QUADRADA FUCOLI S/CORRENTE - SQUARE FUCOLI WITHOUT CHAIN
24F1AL0FNNBAGZZZ00RA 3.4 QUADRADA FUCOLI C/CORRENTE - SQUARE FUCOLI WITH CHAIN
24F1AN0BNQBZZZZZ00PA 3.5 - QUADRADA BÁLTICO - SQUARE BÁLTICO
24I1AJ0PNNBAGZZZ00PA 4.1 - HEXAGONAL EPAL S/CORRENTE - HEXAGONAL EPAL WITHOUT CHAIN
24I1AJ0PNNBAGZZZ00RA 4.2 - HEXAGONAL EPAL C/CORRENTE - HEXAGONAL EPAL WITH CHAIN
24I1AL0PNWBAGEPL00RA 4.3 - HEXAGONAL EPAL GRANDE C/CORRENTE - HEXAGONAL EPAL GRANDE WITH CHAIN
24I1AL0ONNBAGZZZ00RA 4.4 - HEXAGONAL FIG DA FOZ C/CORRENTE - HEXAGONAL FIG DA FOZ WITH CHAIN

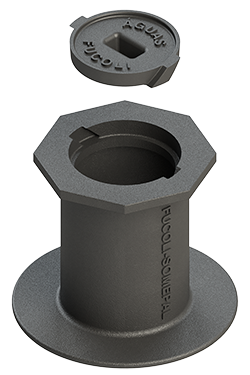

24J1AL0FNNBAGZZZ00PA 5.1 - OITAVADO EPAL S/CORRENTE - OCTAGONAL EPAL WITHOUT CHAIN
24J1AL0FNNBAGZZZ00RA 5.2 - OITAVADO EPAL C/CORRENTE - OCTAGONAL EPAL WITH CHAIN
