Fire fighting

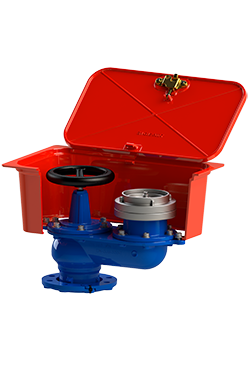

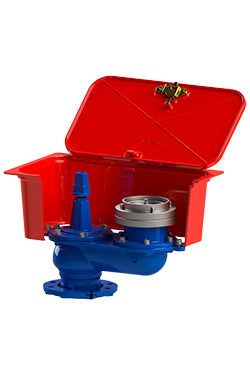

Underground fire hydrant
07.300

Datasheet
Certificates
Operation Manual
Other Documentation
CAD / 3D Drawing

Features:

  • Certified product with CE mark according to EN 14339
  • Prepared for firefighting and potable water supply
  • Body, bonnet, obturator and protection box: ductile cast iron EN-GJS-500-7 (GGG50)
  • Coating of obturator: EPDM
  • Shaft: stainless steel AISI 420
  • Inside and outside coating of hydrant: potable epoxy coating ≥ 250µm
  • Inside and outside coating of the protection box: red color polyester, resistant to the UVs rays, with thickness ≥ 250 μm

Code Description CAD Drawing Quantity
11209450 DN 80 - STORZ 75 [SEM CAIXA / WITHOUT BOX]
11209430 DN 80 - STORZ 75 + CAIXA / BOX
11209435 DN 80 - STORZ 75 + CAIXA / BOX + CURVA COM PÉ / DUCKFOOT BEND
11209480 DN 80 -- CAIXA HIDRANTE ENTERRADO / BOX FOR UNDERGROUND FIRE HYDRANT
11209475 DN 100 - STORZ 110 [SEM CAIXA / WITHOUT BOX]
11209460 DN 100 - STORZ 110 + CAIXA / BOX
11209465 DN 100 - STORZ 110 + CAIXA / BOX + CURVA COM PÉ / DUCKFOOT BEND
11209490 DN 100 -- CAIXA HIDRANTE ENTERRADO / BOX FOR UNDERGROUND FIRE HYDRANT
