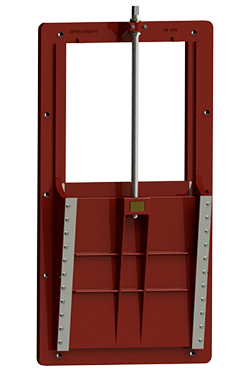

Penstock valve
11.600

Datasheet
CAD / 3D Drawing

Features:

  • Body and obturator: ductile cast iron EN-GJS-500-7 (GGG50)
  • Seat and stem in stainless steel AISI 316L
  • Coating inside and outside: epoxy paint for residual water RESICOAT R4 - ES RED BROWN
  •
  • Q=Square aperture  /  R=Circular aperture

Code Description CAD Drawing Quantity
10788020 DN 100 Q PN 10
10788500 DN 100 R PN 10
10788030 DN 150 Q PN 10
10788505 DN 150 R PN 10
10788040 DN 200 Q PN 10
10788510 DN 200 R PN 10
10788050 DN 250 Q PN 10
10788520 DN 250 R PN 10
10788060 DN 300 Q PN 10
10788530 DN 300 R PN 10
10788070 DN 350 Q PN 10
10788540 DN 350 R PN 10
10788080 DN 400 Q PN 10
10788550 DN 400 R PN 10
10788090 DN 450 Q PN 10
10788560 DN 450 R PN 10
10788100 DN 500 Q PN 10
10788570 DN 500 R PN 10
10788110 DN 600 Q PN 10
10788580 DN 600 R PN 10
10788120 DN 700 Q PN 10
10788590 DN 700 R PN 10
10788130 DN 800 Q PN 10
10788600 DN 800 R PN 10
10788140 DN 900 Q PN 10
10788610 DN 900 R PN 10
10788150 DN1000 Q PN 10
10788620 DN1000 R PN 10
