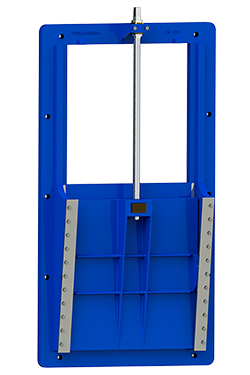

Penstock valve
04.400

Datasheet
CAD / 3D Drawing

Features:

  • Body and obturator: ductile cast iron EN-GJS-500-7 (GGG50)
  • Coating inside and outside: epoxy paint RAL 5005
  •
  •    Q=Square aperture  /  R=Circular aperture
  • AISI304=Seat and Stem in Stainless steel AISI 304
  • AISI316L=Seat and Stem in Stainless steel AISI 316L

Code Description CAD Drawing Quantity
10780020 DN 100 Q AISI 304
10782020 DN 100 Q AISI 316L
10780490 DN 100 R AISI 304
10782490 DN 100 R AISI 316L
10780030 DN 150 Q AISI 304
10782030 DN 150 Q AISI 316L
10780500 DN 150 R AISI 304
10782500 DN 150 R AISI 316L
10780040 DN 200 Q AISI 304
10782040 DN 200 Q AISI 316L
10780510 DN 200 R AISI 304
10782510 DN 200 R AISI 316L
10780050 DN 250 Q AISI 304
10782050 DN 250 Q AISI 316L
10780520 DN 250 R AISI 304
10782520 DN 250 R AISI 316L
10780060 DN 300 Q AISI 304
10782060 DN 300 Q AISI 316L
10780530 DN 300 R AISI 304
10782530 DN 300 R AISI 316L
10780070 DN 350 Q AISI 304
10782070 DN 350 Q AISI 316L
10780540 DN 350 R AISI 304
10782540 DN 350 R AISI 316L
10780080 DN 400 Q AISI 304
10782080 DN 400 Q AISI 316L
10780550 DN 400 R AISI 304
10782550 DN 400 R AISI 316L
10780090 DN 450 Q AISI 304
10782090 DN 450 Q AISI 316L
10780560 DN 450 R AISI 304
10782560 DN 450 R AISI 316L
10780100 DN 500 Q AISI 304
10782100 DN 500 Q AISI 316L
10780570 DN 500 R AISI 304
10782570 DN 500 R AISI 316L
10780110 DN 600 Q AISI 304
10782110 DN 600 Q AISI 316L
10780580 DN 600 R AISI 304
10782580 DN 600 R AISI 316L
10780120 DN 700 Q AISI 304
10782120 DN 700 Q AISI 316L
10780590 DN 700 R AISI 304
10782590 DN 700 R AISI 316L
10780130 DN 800 Q AISI 304
10782130 DN 800 Q AISI 316L
10780600 DN 800 R AISI 304
10782600 DN 800 R AISI 316L
10780140 DN 900 Q AISI 304
10782140 DN 900 Q AISI 316L
10780610 DN 900 R AISI 304
10782610 DN 900 R AISI 316L
10780150 DN1000 Q AISI 304
10782150 DN1000 Q AISI 316L
10780620 DN1000 R AISI 304
10782620 DN1000 R AISI 316L
